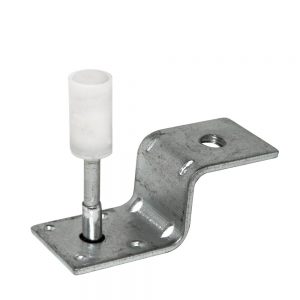

Threaded Rod Hangers

CodeDescriptionPackCase
CLR14-2221/4" - 20 Threaded Rod Hanger with 7/8" x 0.125 Pin100 pc1000 pc
CLR38-2223/8" - 16 Threaded Rod Hanger with 7/8" x 0.125 Pin100 pc1000 pc

Application: For vertical attachment of threaded rod to concrete or structural steel base material.

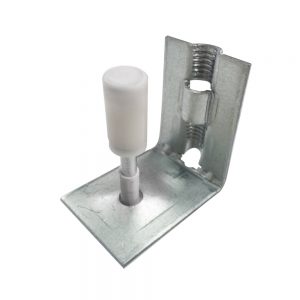

Heavy Duty Threaded Rod Hangers

CodeDescriptionPackCase
CLRHD14-5251/4" - 20 Heavy Duty Threaded Rod Hanger with 1" Step Shank Pin100 pc1000 pc
CLRHD38-5253/8" - 16 Heavy Duty Threaded Rod Hanger with 1" Step Shank Pin100 pc1000 pc

Application: For heavy duty vertical attachment of threaded rod to concrete or structural steel base material.

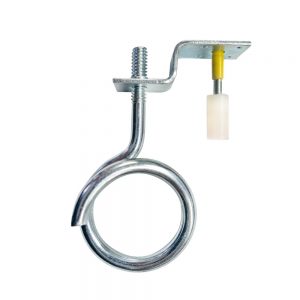

Bridle Ring Clip Assembly

CodeDescriptionPackCase
CLR14222-BRT1141/4"-20 Threaded Rod Clip & 7/8" Pin with 1-1/4" Bridle Ring Combo 100 pc1000 pc
CLR14222-BRT21/4"-20 Threaded Rod Clip & 7/8" Pin with 2" Bridle Ring Combo 100 pc1000 pc

Application: For hanging low voltage cable.

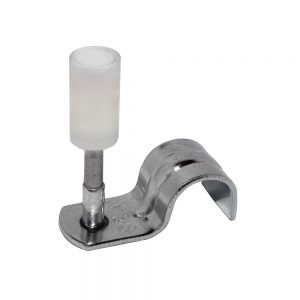

One-Hole Strap

CodeDescriptionPackCase
CLC38-2223/8" One-Hole Strap Clip with 7/8" x 0.125 Pin200 pc2000 pc
CLC12-2221/2" One-Hole Strap Clip with 7/8" x 0.125 Pin100 pc1000 pc
CLC34-2223/4" One-Hole Strap Clip with 7/8" x 0.125 Pin100 pc1000 pc
CLC1E-2221" One-Hole Strap Clip with 7/8" x 0.125 Pin50 pc500 pc

Application: For multi-position (floor, wall, or ceiling) attachment of electrical conduit or armored cable to concrete or structural steel base material.

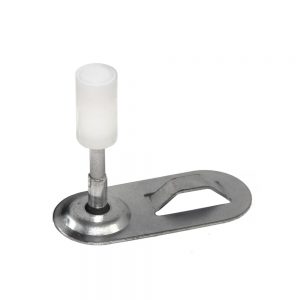

Cable Tie Clip Assembly

CodeDescriptionPackCase
CLT219Cable Tie Clip with 3/4" x 0.125 Pin200 pc2000 pc

Application: To install or secure electric fittings or cable to concrete. Uses a standard cable tie up to 3/8″ width.

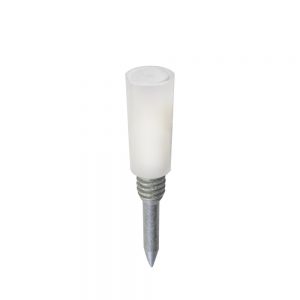

Threaded Studs

CodeDescriptionPackCase
STT141/4" x 20 Threaded Stud - 1/2" Threaded - 7/8" Shank500 pc5000 pc

Application: To attach electrical components to concrete where removability of the component is required.
*Use NTS101-1-ST Nosepiece with A-Adapter (Red) for STT14.
